Maximal power for “maximal” buildings – MAXIMUS 5000

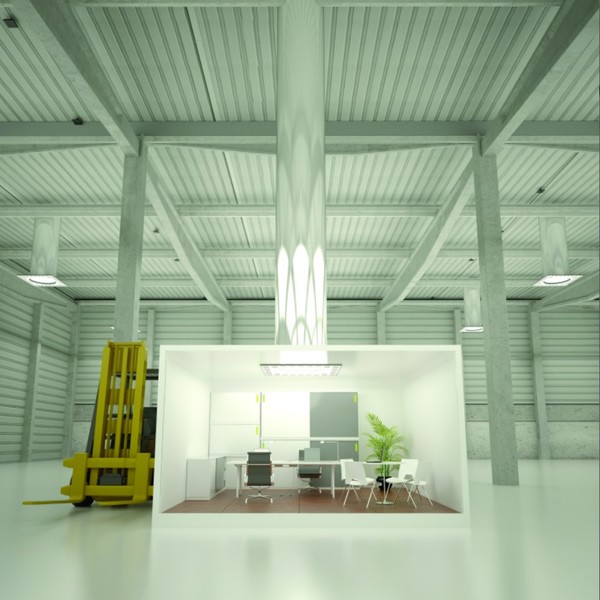

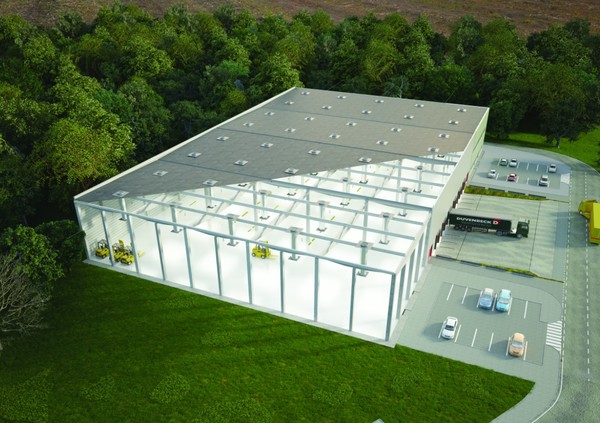

Lightway MAXIMUS 5000 is the most powerful sun tunnel on the market. It is the ideal solution for illuminating of the big spaces by the daylight. Enormous light power of the sun tunnel with tube diameter 1159mm brings enough of daylight for illuminating industrial sheds, warehouses, commercial spaces and offices.

The whole sun tunnel is delivered in assembled state. It means that the installation is very quick and easy. It can be installed in just 15 minutes.

LW MAXIMUS 5000 is an effective replacement of large-area and spot roof skylights.

LW MAXIMUS 5000 attributes:

• enormous light power for illuminating big spaces with daylight

• diameter of sun tube: 1159 mm

• heat permeability coefficient of sun tube: U<0,7 W/m2K

• effective overall maximum distance of sun pipe up to 80m

• possibility od a dding the additional lighting LED Hybrid 5000

• easy and quick installation within 15 minutes

• better attributes than classical skylights

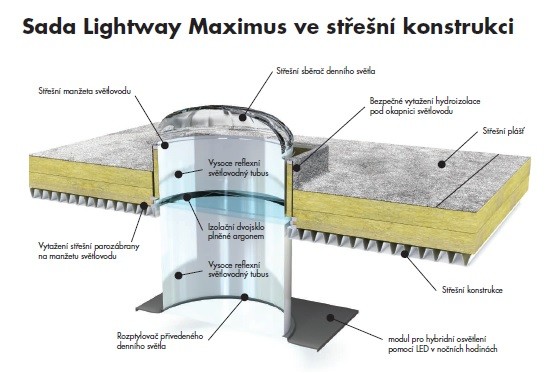

Extremely reflective light tube and adjustable elbow

Inside of the Lightway tube there flows sunlight into the interior. The inside walls of the tube are created by extremely powerful mirrors with maximum light reflectivity.

 The inside reflective layer is made of silver and silicon oxide, which are fixed by chemical vapor deposition in a vacuum. The layer will not or peel it or be warped by changes of temperature and humidity.

 Connecting the light tube to the adjustable elbow, Blue Performance insulation and a dimmer is easy due to systematic connections, which is a standard part of package.

 Technical information:

• reflection of reflexive layer of the pipe 99,8%

• ray diffusion during reflection in 45 angle in pipe <6%

• the basic material is aluminum, 99,7%

• overall maximum distance of sun pipe is up to 80 meters, including 2 adjustable elbows 90° direction change of the conduit. The conduit of the tube can be vertical or horizontal without any effect on performance.

 The loss of light affected by tube lenght can be as little as:

• within 10 meters 0,5%

• more than 10 meters 0,7%

Glass ceiling diffuser – light diffuser

The glass diffuser spreads light through the room and it prevents direct

glare of light in interior. It is made of glass, that’s why it doesn't turn yellow and it lets the sunlight through well without any loss on light intensity and any change on the color spectrum. The diffuser is already assembled with the tube of the length 200mm. It is easy to connect the light tube to isolation element Blue Performance and a dimmer.

• it is made of sodium-potassium glass

• does not turn yellow, does not change color spectrum

• white color trim

Thermal insulation element Blue Performance

The insulation element Blue Performance prevents thermal leaks through the pipe from the interior in winter. On the other hand in the summer, it prevents interior overheating due to excessive temperature. Blue Performance prevents water condensation in the space of the pipe and following water splashing into the diffuser and the ceiling construction. It is easy to connect the light tube to insulation element Blue Performance and a dimmer.

• prevents thermal leaks and emoluments

• coefficient of thermal permeability U 0,6W/m2K

• prevents water condensation in the pipe of sun tunnel

Additional LED light

 It is used for illumination in the time of year when it is dark outside. Your sun tunnel Lightway will do the function of the sun tunnel as well as the ceiling light.

The dimmer of the light – optional accessory

 The shaft clamp inside of the pipe closes the supply of the light into the interior. It is easy to connect the dimmer to the refective pipe, adjustable elbow, isolation element Blue Performance or the diffuser.
