The hybrid ACDC solar air conditioners need no batteries, and only a few PV panels to deliver a huge savings. During the day, when air conditioning is needed the most, you can operate this unit up to 100% by solar panel. At night, you continue to save due to the >SEER 21 rating on this unit. The mini-split air conditioner design allows you to put solar cooling into the area where it's needed the most and avoid the security issues of an unsightly and noisy window unit.

During the day, the system runs primarily on solar power and min. uses zero watt power from the utility company. It can mix with normal AC power when solar power is not enough.

On pure AC power when no free solar energy is used, official AHRI SEER is >21. SEER is "Seasonal EER" and is a way of describing an "average EER" and considers that the system operates under part-load conditions a majority of the time. EER is equal to full-load cooling output in BTUs divided by energy input in watts. Officially, using solar does not change the SEER or the EER. However, if you consider energy input only on the basis of paid energy and don't consider the free solar energy as part of the input, using free energy from 4x 320w solar panels operating at full capacity would result in an EER of approximately 35. Because a system operates at part-load conditions a majority of the time, SEER ratings are typically much higher than EER ratings. If you tested and calculated a SEER value based only on the paid-energy, the numbers would be extremely high. Currently there is no official test standard for testing SEER or EER based on whether or not the energy is paid for.

√Home

Keep the inside cool all day for next to nothing in energy costs. Preventing daytime heat build-up also cuts evening cooling costs.

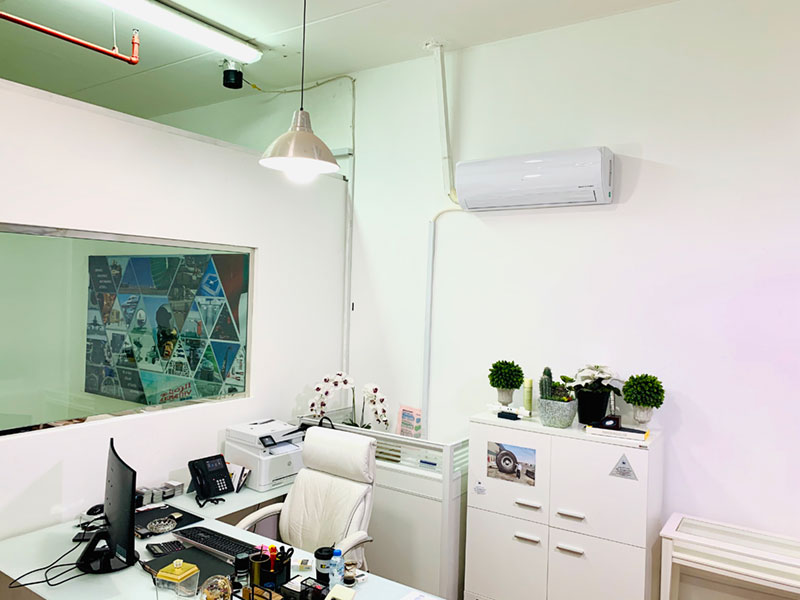

√Office

Keep the work area comfortable during business hours for pennies per day. Cool or heat up to 50m².

√International

Compatible with 50Hz and 60Hz power, use it anywhere in the world.

√Installation

Plug-and-play solar connection

√No batteries required

√No grid power required in daytime

The air conditioner can run directly by solar panels during the day without grid connected.

√Solar Power LED Display

The LED display shows solar input power ratio

Advanced Air Design

• Waterfall heating, the air is directed down during the heating mode

• An added extra inner louver operates when heating to improve airflow

• Automatically selects the airflow direction, horizontal for cooling and vertical for heating

• 10m overlong airflow

Cold Air Prevention

To prevent cold air blowing into the room when the unit is first turned on or after the defrost cycle; the indoor fan will remain off until the indoor coil reaches the desired room temperature setting.

Intelligent Defrosting

• Traditional defrosting works by running the defrost cycle based on a pre-set timer sequence.

• SuperEn new I-Defrost are only performed when needed, which reduces energy waste by eliminating unnecessary defrosting.

• Maximize warm comfort with shorter defrost times

Turbo Mode

This feature is designed to run the indoor fan at super high speed to cool or heat the room quickly so that the ambient temperature approaches the pre-set temperature as soon as possible. This allows the unit to unload quicker providing better comfort levels and energy usage

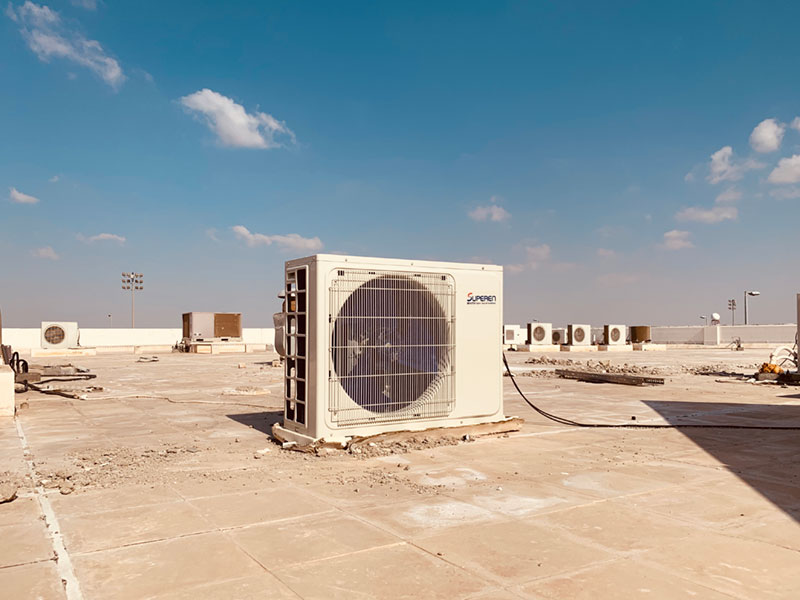

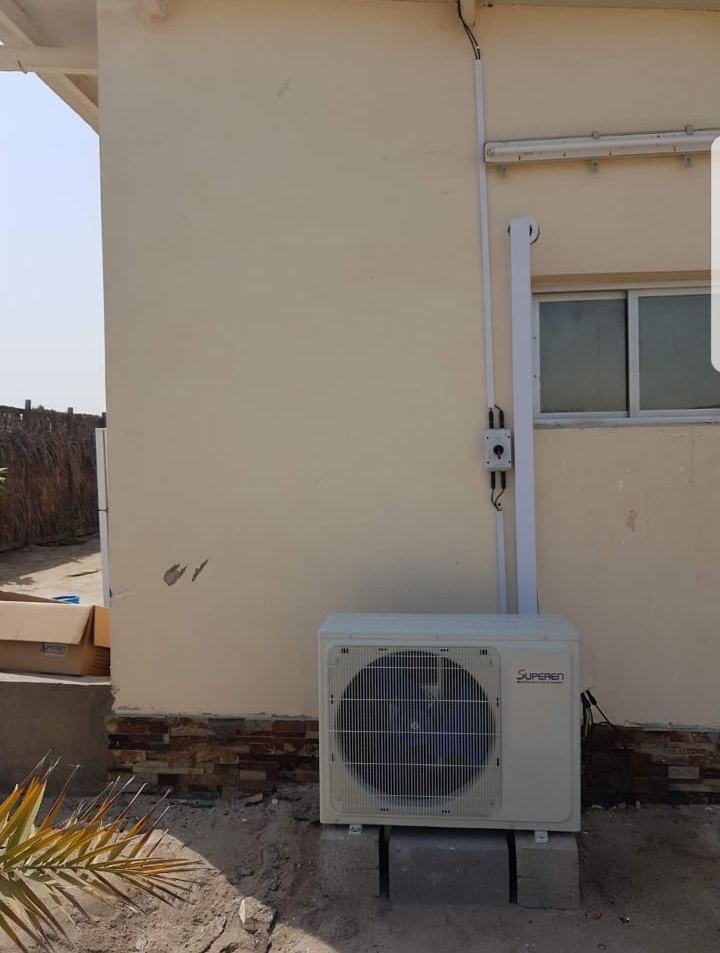

Anti-Corrosion Outdoor Unit

All SuperEn condensing coils have fin stock coated in blue hydrophilic coating giving greater corrosion resistance. All SuperEn condensing units are made from galvanised sheet steel that is then painted for added protection. Stainless steel screws are used throughout.

Better Air Quality and Noise levels

This range of Solar Hybrid Air Conditioners offers several features that improve air quality. All units come standard with filters to remove dust particles. Additional to this, each unit is fitted with – as standard - a photo catalytic filter to remove bacteria, viruses and unpleasant odours.

The Solar Hybrid air conditioner comes with seven fans speeds so that you can choose your desired level of air flow from super low to turbo. The auto fan feature enables the on board logic to select the best fan speed based on the indoor temperature and the thermostat set point. The SuperEn Solar Hybrid air conditioner benefits from smart fluid dynamic design; this has dramatically improved airflow through the air conditioner thus reducing indoor noise levels.

Mould and Odour Prevention

When used as an air conditioner and once the unit is switched off the indoor coil is wet and provides a great environment for mould and bacteria to grow. By pressing the X-Fan button on the remote control the indoor fan will continue to run on for 10 minutes after the unit has been switched. This assists in drying out the indoor coil and helps to prevent the growth of mould and bacteria as well as reducing bad odours in the unit.

I Feel

SuperEn Solar Hybrid air conditions come standard with the I-Feel remote control. This clever feature enables the unit to take the temperature reading from where we sense the indoor temperature rather than where the indoor unit senses the temperature. By pressing the “I Feel” button on the remote the room temperature is now recorded from a sensor in the remote control rather than from the unit itself. This gives intelligent temperature control where it is needed and provides a more precise and comfortable environment.

Wide Temperature Operation

SuperEn air conditioners and heat pumps are designed to operate efficiently from -15 to +52°C

Specifications

General

Model HYBRID-ACDC18

Wall Mounted Split

18,000BTU

Scope Of Delivery 1 Air Conditioner, 1 Warranty Card, 1 Registration Card

Dimensions

Indoor Unit Size  970x315x235mm

Indoor Unit Net Weight  14kg

Outdoor Unit Size  900x700x350mm

Outdoor Unit Net Weight  55kg

Electrical

Solar Input Voltage (DC)  100~300V

Short Circuit Current    10A

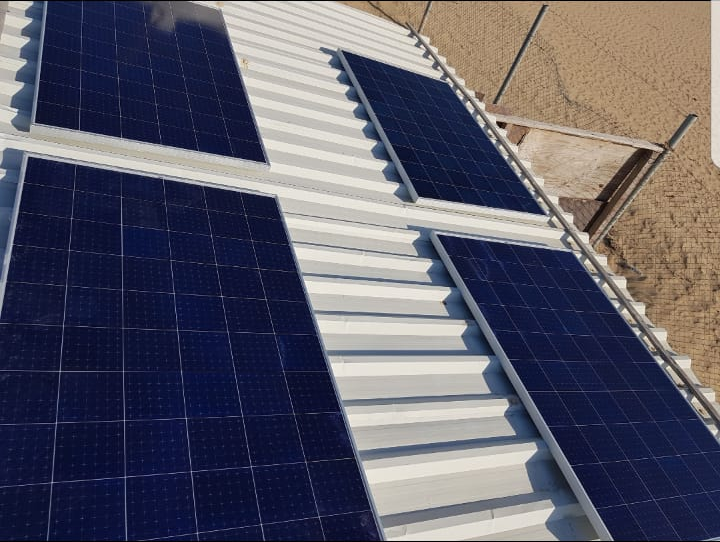

Recommend Solar Input  5×320W @ 36V

AC Power Supply  1Ph, 220~240V, 50/60Hz

Performance

Cooling Capacity   18,000BTU

Power Consumption - Cooling Mode (Max.) 1400 W

Heating Capacity 18,000BTU

Power Consumption - Heating Mode (Max.)  1370 W

Additional

Certificates ETL

Suitable Environment

-30～45℃

Range Of Temperature

16～32℃

Outdoor Noise

＜50 Db(H)

Indoor Noise

44/39/37 (H/M/L)

Refrigerant

R410A
