Robust photovoltaic street light with LED lamp - no power connection required. Recommended for countries with average solar radiation, such as Europe, southern Russia, New Zealand.
High luminous intensity thanks to state-of-the-art SMD LED in combination with an electronic 12V-60V DC PWM driver.
The brightness is comparable to an 80W mercury vapor lamp or 50W sodium vapor lamp.
Very long, maintenance-free luminaire operation due to special design features.
Microprocessor system control,
all brackets and fixings are hot-dip galvanized (with surcharge also with a coating according to desire).
The screws are made of VA stainless steel.
Construction, production and quality management in Germany.
The solar light is maintenance-free - (only the solar module should occasionally be cleaned with water).

General technical data:
Illuminated area: approx. 15 x 5m
Recommended mast spacing: approx. 15 meters
Ambient temperature: -10 ° C ~ + 50 ° C (extension -35 ° C ~ + 65 ° C possible on request)
Protection class: III Low-voltage
test Certification: CE, RoHS, WEEE
20 years availability guarantee for replacement parts.

Luminaire head Specification:
Robust LED luminaire head made of die-cast aluminum
LED lamp: SMD Chipset Philips
LED Power: 15W Energy efficiency class A +++
Light color: 4000K neutral white (on special order also 3000K warm white).
No UV radiation for reduced insect attractiveness
LED efficiency:> 110 lm / w
luminaires Efficiency:> 100 lm / w
Luminous flux Lumen: 1500 Lm Central
illuminance:> 10 lux (4m height)
Average light intensity:> 5 lux (4m)
LED Lifetime approx. 50,000 hours
Degree of protection: IP65 (protected against water and storms).
Warranty 5 years

light control:
programmable microprocessor control with infrared remote control option.

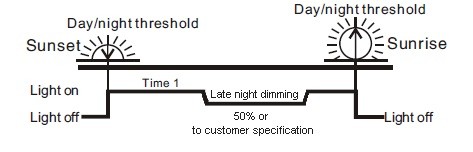

Reading the current operating status with storage of the measurement data of all components of the last days. Automatic switch on at sunset and switch off at sunrise. (Switching level adjustable)
Adjustable dimming during the night in idle mode between 0% - 30%.
When the motion detector is activated, the lighting briefly switches to 100%. The duration of the full illumination is adjustable between 1 min and 10 min.
In addition, the charge controller is equipped with a Smart Power function, which allows automatic dimming at night depending on the battery charge level. If the battery voltage drops below 50%, the lamp is automatically dimmed to 50%, this process is decreasing until the deep discharge protection starts. This setting enables safe operation even on the faint days in winter. The charge controller settings are preset by us according to customer requirements.
If you would like to change settings, you need the remote control S-SOLS29.
We will gladly help you to decide on the right presettings.
All functions are preprogrammed by us free of charge, depending on the project and customer request, so that the luminaire is ready for operation immediately after assembly. Temperature-optimized battery charge and trickle charge to protect the batteries. Overvoltage and deep discharge protection for battery. Reverse polarity and short circuit protection. Additional
fusible link Degree of protection: IP66
Warranty 5 years

solar module Specifications:
High efficiency monocrystalline silicon Tempered tempered glass, hailproof
This high quality module technology also ensures charging in overcast conditions. On dark days in winter, the recharging is limited, the light duration is thus reduced.
Efficiency:> 16%
Power: 50Wp (without extension)
Life expectancy: approx. 25 years Performance guarantee * 20 years 80% / 10 years 90%
* except in the case of mechanical impact

Battery storage:
high-performance solar lithium-ion iron accumulator LiFePo4 Battery voltage: 12V maintenance-free, longlife.
For solar cycle operation
Lifetime 6 - 10 years / 20 ° C Function even at low temperatures.
For sufficient reliability in autumn or winter, we strongly recommend our extension sets.
Autonomous operation in overcast conditions (with fully charged battery):
a) Basic version: 4 days (44 hours)
b) with extension kit Autumn: 5 days (60 hours)
c) with extension kit winter: 7 days (80 hours)
The battery is in the mast, behind the lockable door.

Mast:
Steel mast, hot-dip galvanized
Visible height: 4 m Ground piece: 60 cm for
setting in concrete (on request also 3m - 5m height) For easier installation we also offer installation sleeves into which the mast can be inserted.
Lockable mast door for easy access to the controls.

Delivery disassembled with the following components:
LED lamp head with mast mounting, lithium-ion battery solar module with stable, screw-down mast mounting, steel mast, lighting control (already mounted in the mast).
Illustrated assembly instructions in German or English. Other languages ​​on request.
All components are pre-wired and prepared for quick setup.
The ready-to-use light is delivered disassembled for safe transport.
* The warranty is void in case of force, incorrect use or improper installation.
